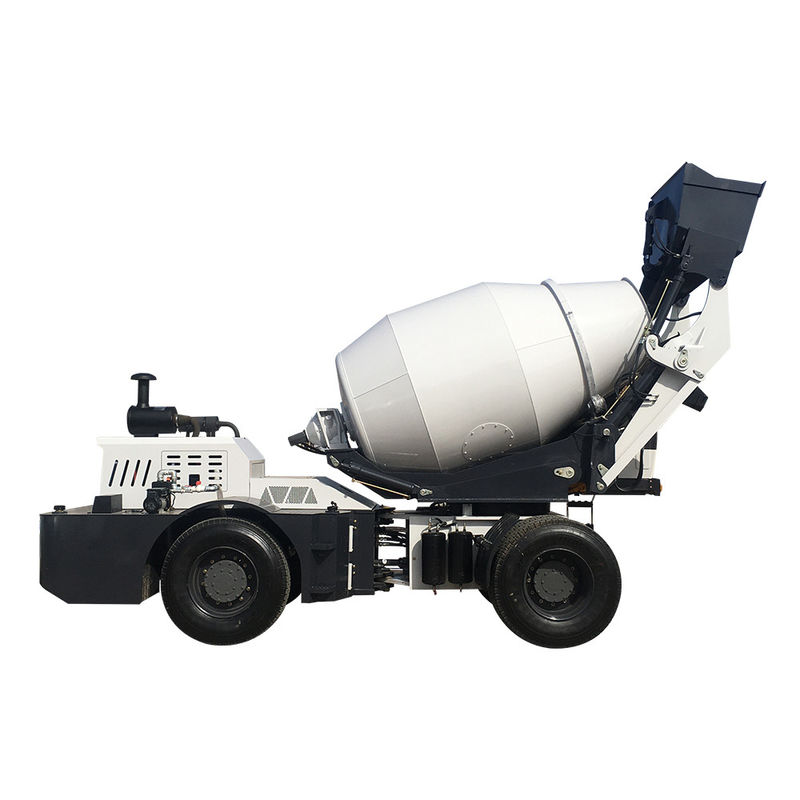

Self Loading Concrete Mixer
>
|
| Place of Origin | China |
| Brand Name | HORNQUIP |
| Model Number | H4000A |
| Operating weight | 8200 kg |
| Drum geometric volume | 5.5m³ |
| Max. output | 4m³/drum |
| Overall dimension | 7420*3050*3410 mm |
| Bucket capacity | 0.5m3 |
| engine | Yuchai YCD4J22T-115 (Yuchai 4105turbo) |
| Rated power | 4-cylinder diesel 85kw@2600rpm |
| Rotating speed | 15-20 r/minute |
| Max. speed | 45km/h |
| Discharge hole height | 2.2-1.6 meters (Adjustable) |
| Rotation angle of drum | 270° |
| Steering system | Hydraulic, articulated |
| Transmission | 280 |
| Axle | 4X4, heavy big hub reduction |
| Tyre | GRT981 (front two tyre),rail vacuum tyre |
| Brake system | Caliper disc brake on 4 wheels |
| Water tank | 500 L |
| Hydraulic oil tank | 125 L |
| Fuel tank | 125 L |
| Package | 1 unit in 1*40HQ Container |
